4 NE5532 Dual-channel 2.0 Stereo High/Mid/Bass 3-way Home Speaker Crossover Electronic Crossover DIY Speaker Amplifier Crossover 328hz-3288hz

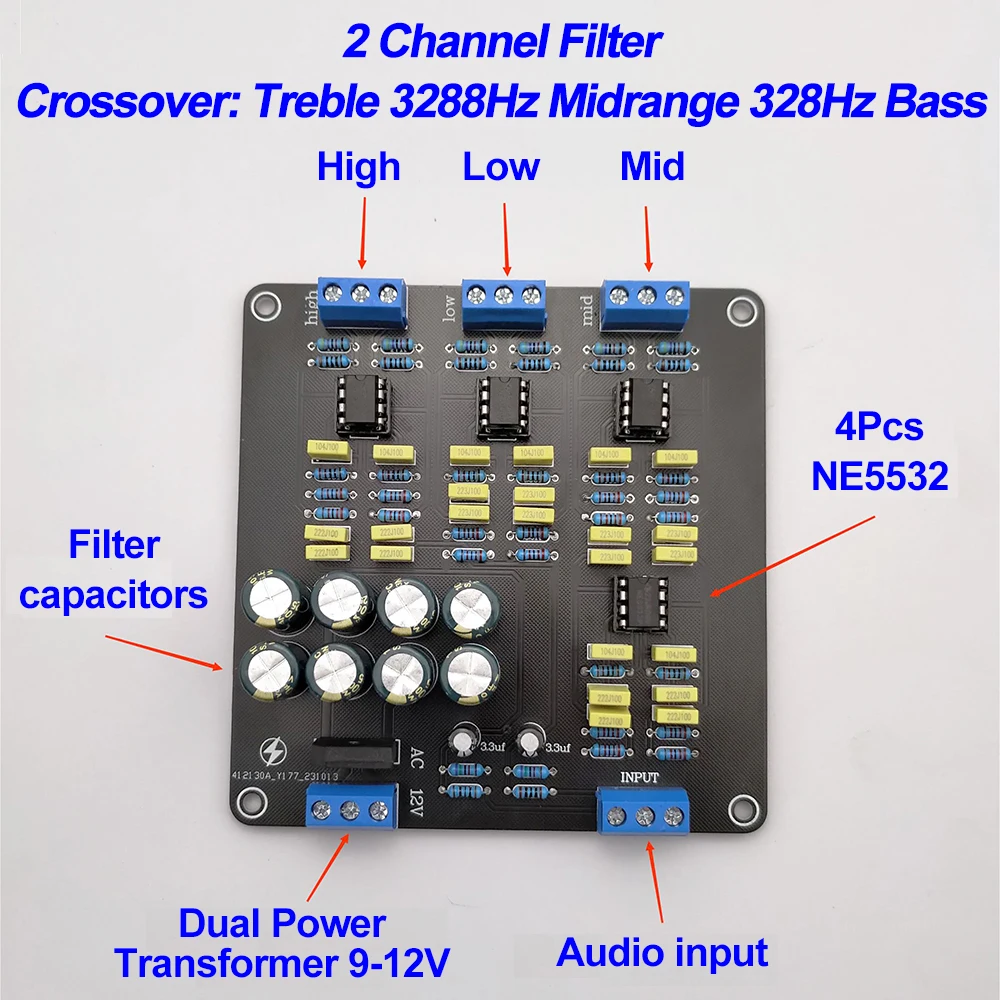

Default Crossover: Treble 3288Hz, Midrange 328Hz, Bass
Electronic three-way crossover module：
The module adopts the common Linquartz structure design, by the high-pass filter, low-pass filter and band-pass filter, three parts.
The default crossover point is (3288hz-328hz) This crossover point can effectively adapt to most of the audio equipment on the market.
Op-Amp Chip: 4pcs NE5532
Crossover structure: Linquartz-Riley filters
Signal input:Dual 2.0 stereo inputs
Crossover Slope:12dB/Oct 12dB (2nd oroder)
Audio Outputs: 6-channel outputs (left and right treble channels, left and right midrange channels, left and right bass channels)
Capacitor Type: Correction Capacitor
Resistor type: High-precision metal film resistor
Filter structure: high-pass filter, low-pass filter, band-pass filter
Power supply power: dual power transformer AV 9-12V Note that not more than 12V25W

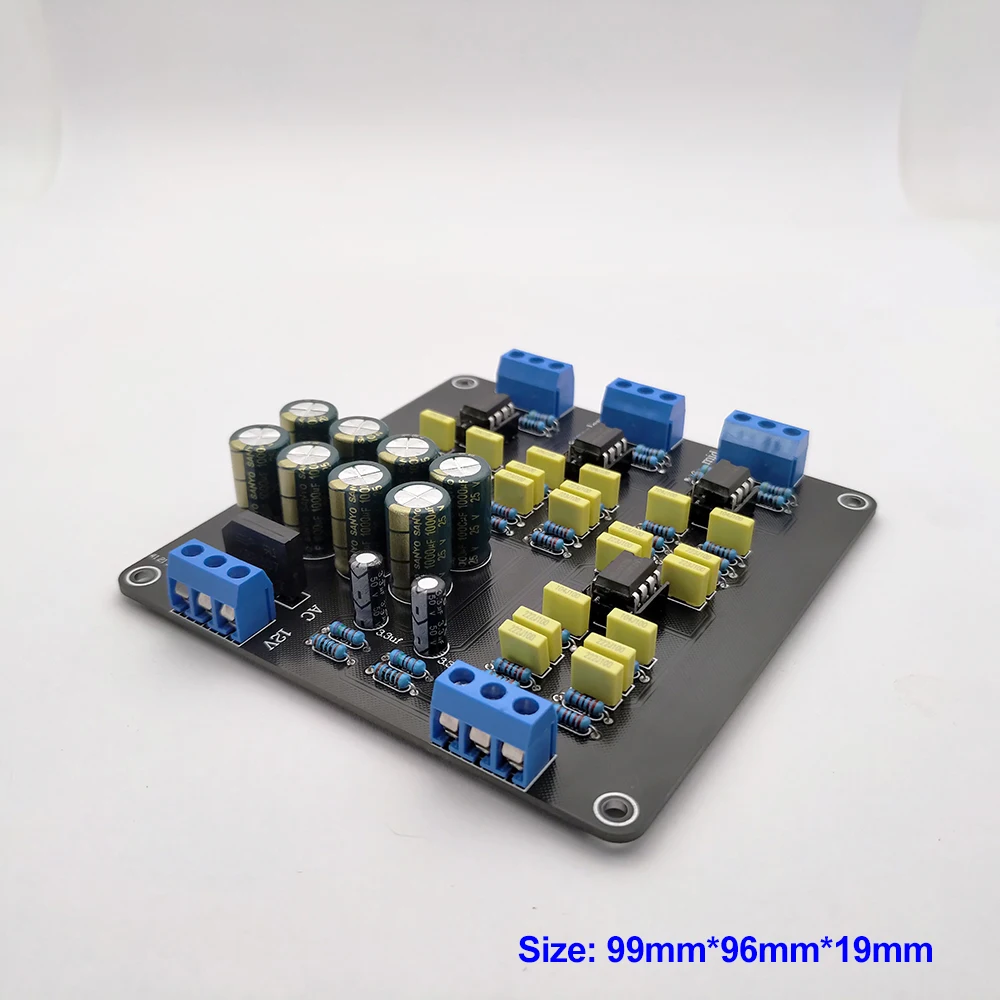

Module size: 99mm * 96mm * 19mm
Module weight: 73 g
Default crossover frequency: (treble 3288Hz midrange 328Hz bass)
Package include:
1x Electronic 3-way Crossover filter
