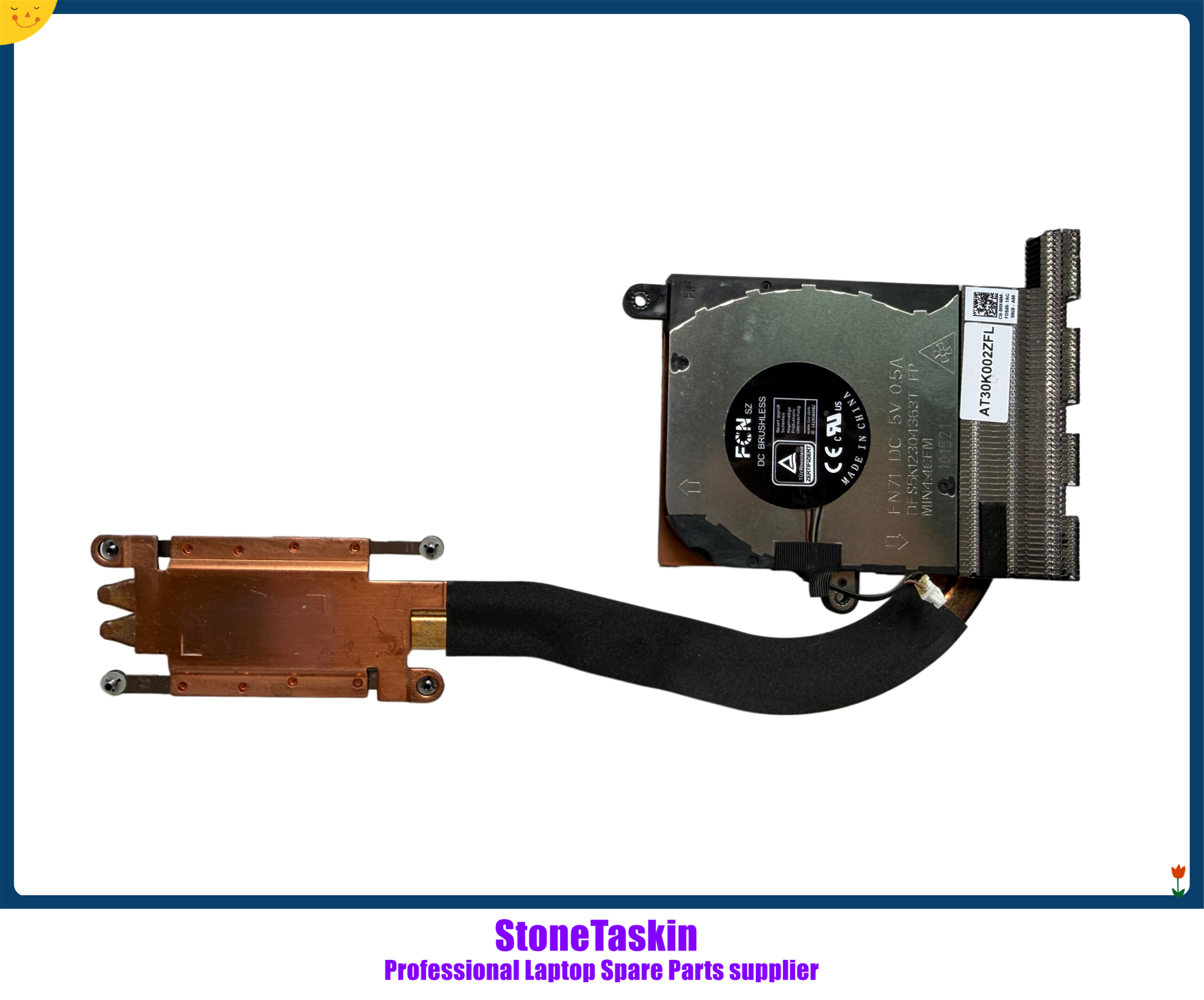

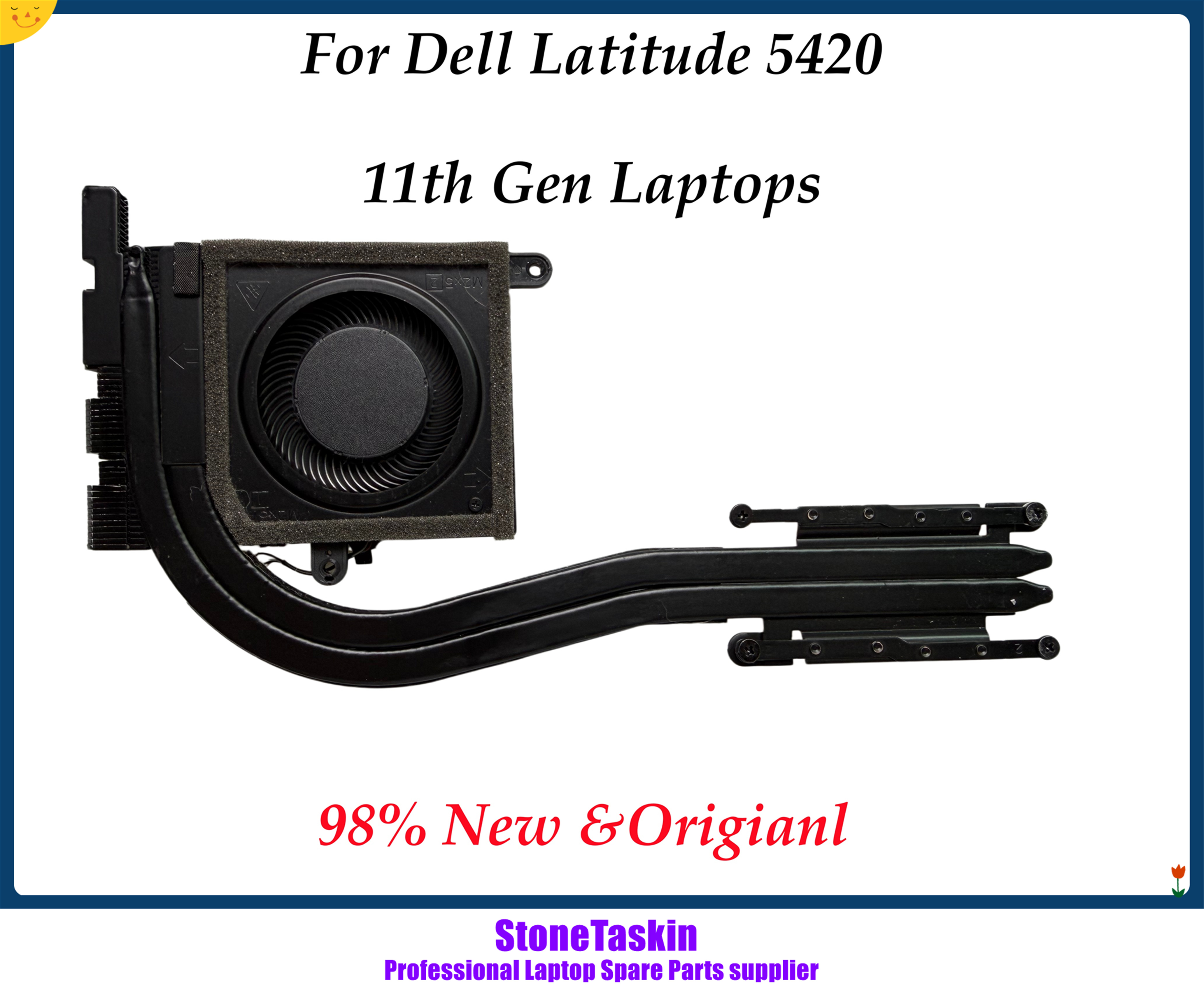

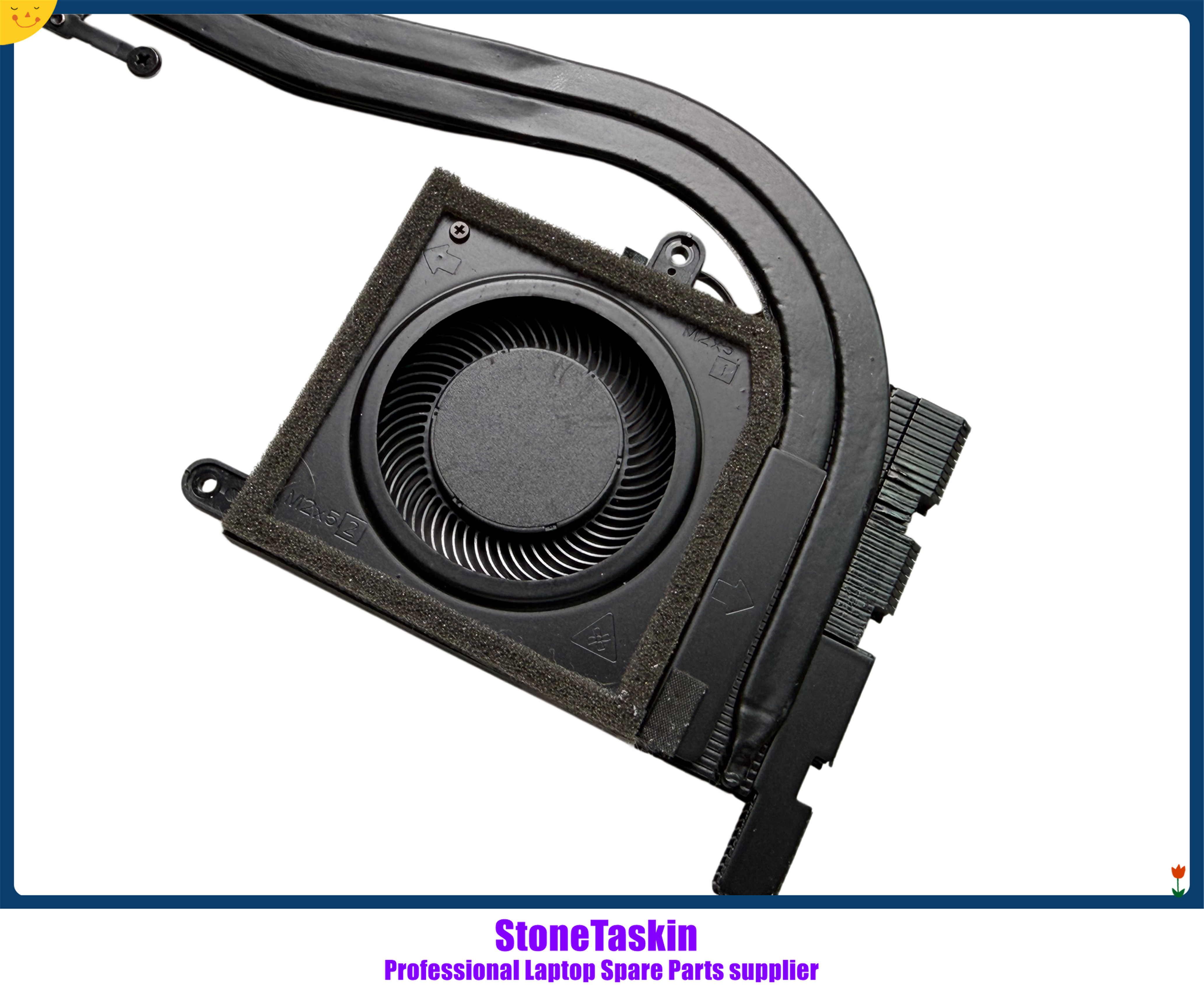

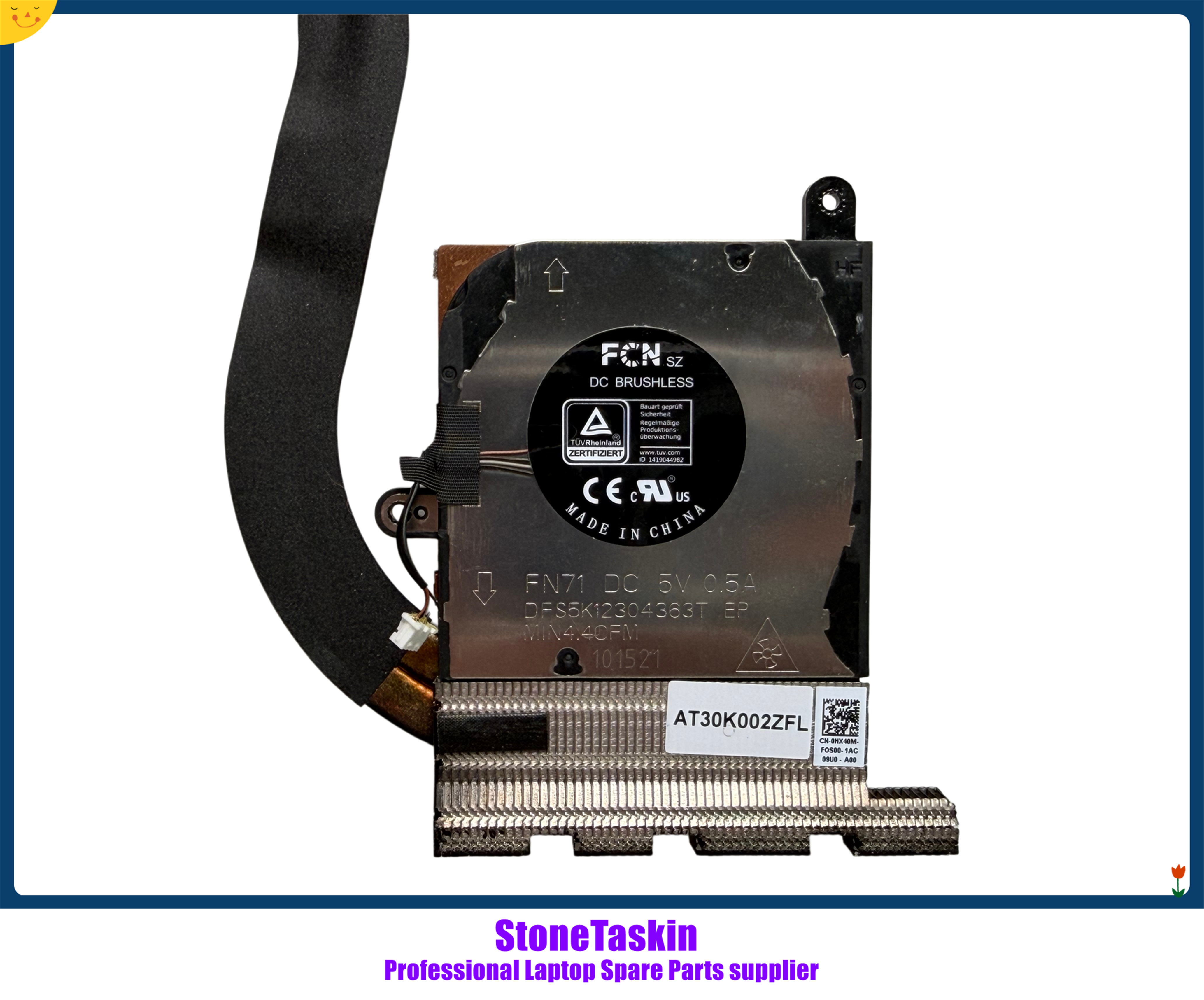

StoneTaskin Genuine Refurbished For Dell Latitude 5420 0HX40M CPU Cooling Heatsink Assembly with Fan AT30K002ZFL DFS5K12304363T Free Shipping





Product Name:

StoneTaskin Genuine Original Refurbished For Dell Latitude 5420 E5420 CN-0HX40M Cooling Heatsink Radiator Fan 45 Days Warranty

Product Description:

This is a refurbished, original Dell cooling assembly (heatsink + fan) designed for the Dell Latitude 5420/E5420 business laptop. It is a direct replacement for the original cooling system with Dell part number CN-0HX40M. The part has been professionally refurbished (cleaned, tested, and restored) to ensure proper thermal performance and comes with a 45-day warranty.

Key Specifications:

Compatibility & System Context:

Primary Compatible Devices:

This heatsink is designed for the Dell Latitude 5420/E5420 series, a 14-inch business laptop. Compatibility is tied to the specific thermal design and motherboard layout of models using the CN-0HX40M part.

Important Note: "Refurbished" means this is a used, original Dell heatsink-fan assembly that has been disassembled, thoroughly cleaned of dust and old thermal paste, inspected for damage (bent fins, fan bearing issues), and tested for basic functionality. It is not a brand-new part from Dell.

Function & Critical Importance:

The combined heatsink and fan is the laptop's primary active cooling system. Its functions are:

1. Heat Absorption: Draws heat from the CPU (and sometimes chipset) via thermal interface material.



2. Heat Distribution: Spreads heat through copper heat pipes to the aluminum fin stack.



3. Heat Dissipation: The integrated fan blows air through the fins to exhaust heat from the laptop chassis.



4. A failing unit leads to overheating, thermal throttling (reduced CPU performance), system instability, and potential long-term damage.



Common Scenarios Requiring Heatsink/Fan Replacement:

1. Fan Failure: The fan makes grinding noises, stops spinning, or spins erratically.



2. Severe Clogging: The heatsink fins are irreparably clogged with dust and debris, impairing airflow.



3. Physical Damage: Bent or broken heat pipes or fins, often from previous repair attempts.



4. Poor Thermal Performance: Even after repasting and cleaning, temperatures remain excessively high, indicating degraded heat pipe efficiency.



Installation Guide (Medium Difficulty):

️ Warning: Replacing the heatsink requires partial to full disassembly of the laptop. Basic to intermediate technical skill is recommended.

Required Tools & Materials:

• Precision screwdriver set (Phillips #0, #00)



• High-quality thermal paste (e.g., Arctic MX-4)



• Plastic spudger/prying tools



• Isopropyl alcohol & lint-free wipes (for cleaning)



• Anti-static precautions (wrist strap or grounded work surface)



Step-by-Step Overview:

1. Power Down & Open: Shut down the laptop, unplug it, and remove the battery (if removable). For Latitude 5420, remove the bottom cover by unscrewing all screws.



2. Disconnect Battery & Prepare: If the battery is internal, disconnect its cable from the motherboard. Disconnect the fan cable from the motherboard.



3. Remove the Old Heatsink: The heatsink is secured to the motherboard with several screws, usually in a numbered sequence. Unscrew them in reverse order (e.g., 4,3,2,1) to avoid warping the board. Gently lift the old assembly away.



4. Clean Surfaces: Thoroughly clean the CPU die and the base of the new heatsink with isopropyl alcohol to remove all old thermal paste residue.



5. Apply New Thermal Paste: Apply a small, pea-sized amount of new thermal paste to the center of the CPU.



6. Install New Heatsink: Carefully place the refurbished StoneTaskin heatsink onto the CPU, aligning all screw holes. Screw it down in the correct numbered order, tightening each screw gradually in a cross pattern. Do not overtighten.



7. Reconnect & Reassemble: Reconnect the fan cable to the motherboard. Reconnect the internal battery (if disconnected). Replace the bottom cover and screws.



Warranty & Support:

• Warranty Period: 45 days from the seller.



• Coverage: Typically covers defects in the refurbished part (e.g., fan doesn't spin on arrival, major physical defects).



• Exclusions: Damage due to incorrect installation, use of wrong thermal paste, or overheating damage to other components is not covered.



• No Dell Support: This is a third-party refurbished part; Dell provides no warranty or support for it.



Package Contents:

• 1 x Refurbished Heatsink & Fan Assembly (CN-0HX40M).



Purchase Verification Checklist:

1. Exact Model Confirmation: Your laptop must be a Dell Latitude 5420 or E5420. Check the service tag or model label on the bottom.



2. Part Number Match: Verify the original part number on your old heatsink is CN-0HX40M. This is crucial, as different CPU configurations (e.g., with/without discrete graphics) may use different heatsinks.



3. Skill Assessment: Ensure you are comfortable with laptop disassembly and handling fragile components.



4. Material Readiness: Have thermal paste and the necessary tools ready before starting.



Why Consider This Refurbished Heatsink?

1. OEM Fit and Performance: As an original Dell part, it guarantees perfect physical and thermal compatibility.



2. Cost-Effective Solution: Significantly cheaper than buying a brand-new OEM heatsink from Dell, especially for an out-of-warranty laptop.



3. Solves Core Cooling Issues: Directly addresses problems caused by a failed fan or inefficient heatsink.



Important Notes & Risks:

• Refurbished Nature: This is a used part. While cleaned and tested, its long-term reliability cannot be guaranteed to the same standard as a new part.



• Installation Risk: Improper installation (uneven screw tightening, insufficient/too much thermal paste) can lead to poor cooling and CPU damage.



• Thermal Paste Required: Thermal paste is NOT included. You must purchase it separately.



• Professional Recommendation: If you are not confident in your technical skills, having the repair done by a professional is strongly advised to avoid costly mistakes.



Final Summary:

The StoneTaskin refurbished heatsink-fan assembly (CN-0HX40M) is a practical, cost-effective replacement for restoring proper cooling to a Dell Latitude 5420/E5420. It is suitable for users who have confirmed their laptop's exact model and part number and possess the necessary skills for the repair. The 45-day warranty offers basic protection. For most business users, having this installed by a technician may be the safest option to ensure system stability and longevity.
